Zoo Mesh Series With Hand woven stainless steel netting
What is Handwoven Stainless Steel Netting?
Handwoven Stainless Steel Netting is hand-woven from Material 304 or 316 stainless steel ropes by molds. It is a creative product that perfectly replaces the fences and bars used in zoological gardens, so it is called zoo mesh by clients. Stainless steel wire rope mesh for enclosure fences (alternate names: stainless steel cable mesh, flexible metal mesh, stainless steel wire rope woven mesh, stainless steel knotted rope mesh, stainless steel wire mesh, hand-woven stainless steel netting, stainless steel rope mesh).
HEBMETALMESH is a stainless steel wire mesh manufacturer from China, being a professional Handwoven Stainless Steel Mesh supplier. We are the zoo fence, enclosure factory supplier. Our products are widely used in zoos and therefore referred to by our customers as Zoo mesh. Our products are known as zoo fence, enclosure fence & birds aviary mesh, and so on.
Stainless Steel wire rope mesh enclosures zoo fencing produced by Hebmetalmesh is safety-certified, simple in structure, easy to install. Beautiful in appearance, highly durable, and maintenance-free (alternate names: hand-woven stainless steel netting, stainless steel wire mesh, flexible metal mesh, stainless steel cable mesh, stainless steel knotted rope mesh, handwoven multiple wire mesh).
It is widely used in zoos, safari parks, ecological parks, bird habitats, etc. Whether it is South Africa, the Middle East, or the Americas, applying stainless steel wire rope mesh has been recognized by more and more experts. It can fit almost all the needs in the zoological. It can be the perimeter fence of large outdoor animal enclosures; it can also be the sky roof of the flight aviary.
Zoo mesh’s reliable strength, flexible shape, and long service life. It has been recognized by more and more zoo enclosure designers, and there are many successful experiences for later reference.
Details and features – Handwoven stainless steel netting
The main product of HEBMETLAMESH is the sleeveless stainless steel wire rope mesh, which can with stand more pressure than the same thickness of the sleeved steel wire rope mesh. Therefore, the sleeveless steel rope mesh is lighter, more transparent, and more beautiful.
Because of these characteristics, more and more zoos have begun to use sleeveless stainless steel wire rope mesh as zoo fences.
Compared with the common enclosure, the handwoven stainless steel netting enclosure has better ventilation and light transmission. It has good elasticity and toughness and high resistance to breaking. Compared with other products, the stainless steel rope zoo fence is lighter and thinner, making the animal’s living environment more open and natural.
Stainless steel wire rope mesh has better shape plasticity (adaptation) and can be deployed in designs of more shapes.
Stainless steel cable mesh is unrestricted in applying architectural solutions, never-ending.
- Good sight, Transparent: give the animals a free living environment, and give visitors a good view of sight.
- Flexibility: the smooth mesh surface can get in close contact with animal’s fur and feathers without damaging them and meanwhile guarantees enough tensile strength.
- Its rust and corrosion-resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduce the zoo’s operating costs. One-time investment provides permanent use—its comprehensive profits outperform other competitive products greatly.
- Lightweight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service.
Naming – Handwoven stainless steel netting
Hebmetalmesh designs and produces handwoven stainless steel mesh, suitable for zoo animal enclosure fence, birds aviary mesh, stadium fence, safety protection nets, zoo fencing, and so on. Stainless steel wire rope mesh by pure manual processing production, after a variety of processing technology. It is luxurious in appearance, highly durable, and long-lasting.
Rope diameter, Mesh aperture, and Mesh panel size can all be customized. We will produce according to your requirements.
Handwoven stainless steel netting Naming Scheme
The specification name of stainless steel wire rope mesh is composed of the wire rope diameter and the mesh aperture.
For example:
HM2050:
Rope diameter: 2.0mm (5/64″)
Mesh aperture: 51mm × 51mm (2″ × 2″)
The wire rope diameter is 2.0 mm; When the opening angle of each mesh is 90°, the distance between the two parallel ropes is the standard rope diameter. Shown as the “X” in the picture. In this example, X = 51mm.
Wire rope diameter
- By inch: 3/64″, 1/16″, 5/64″, 3/32″ and 1/8″
- By mm: 1.2mm, 1.6mm, 2.0mm, 2.4mm and 3.2mm
Mesh aperture
- By inch: 3/4″ x 3/4″, 1″ x 1″, 1.5″ x 1.5″, 2″ x 2″, 3″ x 3″, 4″ x 4″
- By mm: 19mm x 19mm, 25.4mm x 25,4mm, 38mm x 38mm, 51mm x 51mm, 76mm x 76mm, 102mm x 102mm
Specifications
Regular Handwoven stainless steel mesh Specifications
Handwoven stainless steel mesh, the rope diameter, material and mesh size can all be customized. We will produce according to your requirements. Stainless steel rope mesh (alternate names: stainless steel cable mesh, flexible metal mesh, stainless steel wire rope mesh, stainless steel knotted rope mesh, stainless steel wire mesh, hand-woven stainless steel netting, stainless steel rope mesh).
: stainless steel cable mesh, flexible metal mesh, stainless steel wire rope mesh, stainless steel knotted rope mesh, stainless steel wire mesh, hand-woven stainless steel netting, stainless steel rope mesh).
Item ID | Mesh Details | Material |
---|---|---|
HM1220 | 3/4″ x 3/4″ x 3/64″ | SS304/316 |
HM1225 | 1″ x 1″ x 3/64″ | SS304/316 |
HM1238 | 1.5″ x 1.5″ x 3/64″ | SS304/316 |
HM1250 | 2″ x 2″ x 3/64″ | SS304/316 |
HM1276 | 3″ x 3″ x 3/64″ | SS304/316 |
HM12102 | 4″ x 4″ x 3/64″ | SS304/316 |
HM1625 | 1″ x 1″ x 1/16″ | SS304/316 |

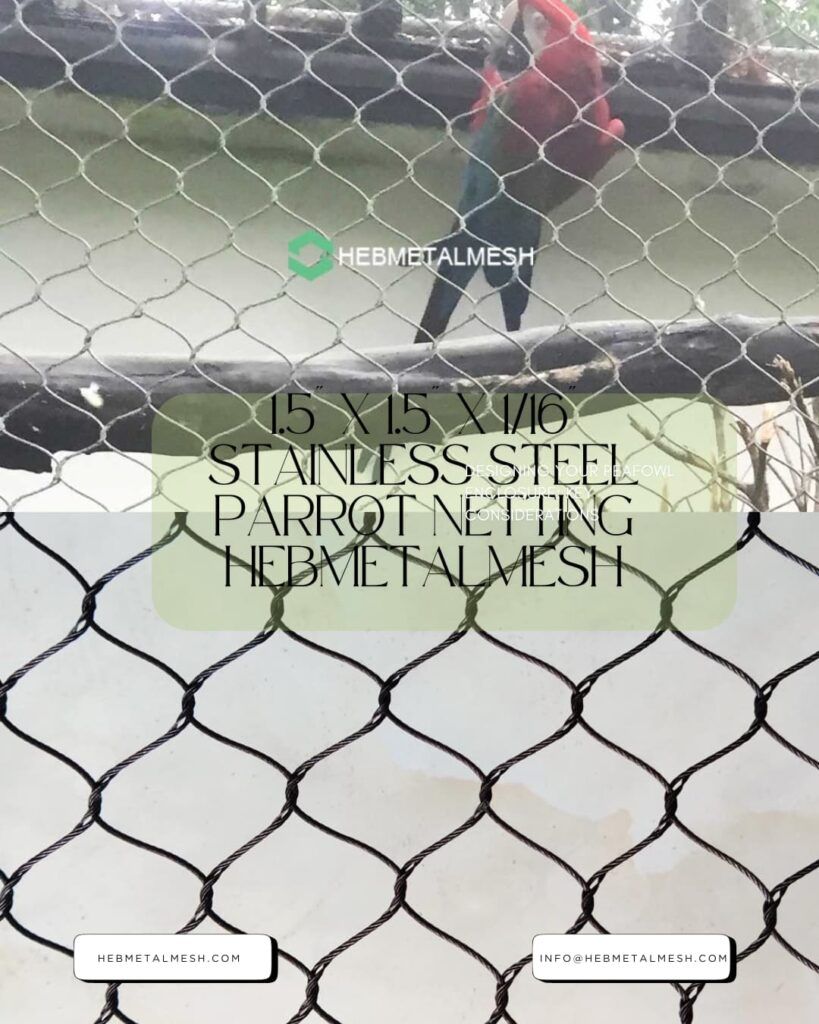

HM1638 | 1.5″ x 1.5″ x 1/16″ | SS304/316 |
HM1650 | 2″ x 2″ x 1/16″ | SS304/316 |
HM1676 | 3″ x 3″ x 1/16″ | SS304/316 |
HM16102 | 4″ x 4″ x 1/16″ | SS304/316 |
HM2038 | 1.5″ x 1.5″ x 5/64″ | SS304/316 |
HM2050 | 2″ x 2″ x 5/64″ | SS304/316 |
HM2076 | 3″ x 3″ x 5/64″ | SS304/316 |
HM20102 | 4″ x 4″ x 5/64″ | SS304/316 |
HM2438 | 1.5″ x 1.5″ x 3/32″ | SS304/316 |
HM2450 | 2″ x 2″ x 3/32″ | SS304/316 |
HM2476 | 3″ x 3″ x 3/32″ | SS304/316 |
HM24102 | 4″ x 4″ x 3/32″ | SS304/316 |
HM3250 | 2″ x 2″ x 1/8″ | SS304/316 |
HM3276 | 3″ x 3″ x 1/8″ | SS304/316 |
HM32102 | 4″ x 4″ x 1/8″ | SS304/316 |
Servers
- Free Sample: A sample of less than 1 foot square wire mesh is provided free of charge. The requestor needs to incur the courier charges.
- Custom Specification:
1. Material: 304 or 316;
2. Panel Size: Our standard size is 20 meter x 8 meter. Upon request, we will manufacture the wire rope netting according to specification;
3. Wire Rope Diameter: Ranging from 1.2mm, 1.6mm, 2.0mm, 2.4 mm, and 3.2mm;
4. Apertures: Standard apertures are from 102mm x 102mm, 76mm x 76mm, 51mm x 51mm, 38mm x 38mm, 25.4mm x 25.4mm, 19mm x 19mm. Others Apertures also accept customized. - The size of wire rope mesh panels roll: The size of the bulk roll varies depending on the size of the Handwoven stainless steel mesh ordered.
- Lead time: The order could be arranged within 24hours, lead time is between 7-30 days depending on the quantum of order.
Ordering
- Contact us. Confirm the raw materials according to the application environment. 304 stainless steel is suitable for most cases; 316 stainless steel is better for corrosion-resistant and suitable for oceanic climate.
- Recommend the specifications and sizes to you, and give you the most reasonable proposal according to the application purpose.
- Quote the prices of wire mesh, delivery time, and shipment method, etc.
- Before placing an order, a free sample of a selected specification is available to you. The sample quality is the same as the stainless steel zoo mesh that you ordered.
- Confirm the order and make the down payment.
- Schedule the production plan.
- After production is completed, you can come to inspect the products; then we will demand the balance and arrange shipment according to your requirement.
- 7*24 hours after-sales consultation.
- Regular post-sales contacts. Your suggestions are welcome and will be helpful for us to enhance our products and services.
