Modern aviary design focuses on “immersion biology,” where the barrier between the visitor and the bird vanishes. Stainless steel rope mesh is the industry standard for these “invisible” enclosures because its high strength-to-weight ratio allows for massive spans with minimal structural support. This ensures a natural light environment for the birds and a 99% transparent viewing experience for the public.
1. The Paradigm Shift: From Cages to Ecosystems
For decades, the standard for zoological design was the “iron bar.” It was a philosophy of pure containment—heavy, vertical, and intentionally visible. These barriers were designed to remind the visitor that the animal was “inside” and they were “outside.” But in 2026, we are witnessing the final death of the iron bar. Modern zoological philosophy has undergone a radical transformation, moving away from the aesthetic of the cage and toward the creation of seamless ecosystems.
The reason for this shift isn’t just about looks; it’s about immersion biology. Research has shown that heavy, dark barriers have a negative psychological impact on both animals and visitors. For animals, rigid vertical bars can cause stress and restrict natural movement patterns. For visitors, a visible cage creates a psychological “wall” that prevents empathy and reduces dwell time. When people feel like they are looking into a prison, they move on quickly.
The “Aha!” Moment: Leading curators now realize that the barrier should not be a separate entity from the habitat. Instead, it should be the canvas for the entire environment. By using “invisible” barriers, you allow the landscape to flow through the enclosure. Trees, rocks, and light aren’t cut off by shadows from thick bars. The result is a space where the animal behaves more naturally, and the visitor feels like they have stepped into the wild. This immersion is only possible when the containment material is so subtle that the human eye simply ignores it.
2. Why Stainless Steel Rope Mesh is the Gold Standard
If the goal is “invisibility,” why is stainless steel rope mesh the undisputed champion of the industry? It comes down to a fascinating mix of transparency science and raw engineering.
Transparency Science: The human eye is easily tricked by depth of field. Because our hand-woven mesh uses incredibly thin wire diameters—often as small as 1.0mm to 3.2mm—while maintaining an open-area ratio of up to 95%, the eye naturally focuses on the objects behind the mesh. From a distance of just a few meters, the brain essentially “deletes” the mesh pattern. This allows for a 4K-quality viewing experience of the wildlife, unobstructed by the distracting “flicker” caused by thicker, rigid welded wire or traditional fencing.
Strength-to-Weight Ratio: This is where the engineering magic happens. It seems counterintuitive that a material so light and airy can contain a 200lb chimpanzee or a high-velocity bird of prey. However, because each wire is made of multi-strand stainless steel cables woven into a diamond pattern, the mesh acts as a tensile web. Instead of resisting force at a single point, the entire panel shares the load. This high-tensile strength allows designers to span massive distances—up to 30 or 40 meters—without the need for heavy, view-blocking support columns.
Flexibility vs. Rigidity: Unlike welded wire, which snaps under pressure or deforms when hit by a falling tree branch, woven rope mesh is inherently flexible. It has “memory.” If an animal impacts the mesh or a storm drops debris on the enclosure, the mesh deflects, absorbs the energy, and then snaps back to its original shape. It’s safer for the animals, as there are no sharp broken welds, and it’s safer for the facility’s maintenance budget.
Expert Specification: Different species require different levels of “give” and aperture size. To find the exact match for your project, from snow leopards to exotic parrots, explore our specialized Zoo Mesh Series for detailed engineering specs.
As we discussed in our Modern Deck Railing Guide, this same “invisible” durability is what makes this material a favorite for high-end residential architecture. In the zoo, however, that strength is a matter of life and death.
3. Designing for Different Species: One Size Does Not Fit All
In zoological design, a “generalist” approach is a recipe for disaster. An enclosure designed for a tiger will not hold a tamarin, and a mesh that keeps a hawk in might not keep a rat out. Precision in aperture (hole) size and wire gauge is what separates a world-class habitat from a liability.
The Small Songbird Challenge When designing for small, delicate species, the primary threat isn’t the bird escaping—it’s the predators trying to get in. Snakes, rats, and even local birds of prey can decimate an exotic collection if the mesh is too wide. We utilize fine-gauge mesh with apertures as small as 20mm. This creates a “micro-barrier” that is nearly invisible to the human eye but acts as a solid wall against vermin. Because the wire is so thin, it prevents these small birds from injuring their beaks or wings if they fly into the perimeter—a common issue with rigid, abrasive welded wire.
Large Raptors & Birds of Prey For eagles, owls, and vultures, the challenge is kinetic energy. These birds are heavy and fast. When a raptor dives, the impact force on the mesh is significant. Here, we transition to a thicker cable diameter (2.0mm to 3.0mm) that provides the necessary impact resistance. The woven nature of the mesh allows it to flex like a tennis racket string, absorbing the bird’s momentum without causing injury, while maintaining the structural integrity of the entire dome.
The “Chew Factor” If you’ve ever worked with parrots, macaws, or cockatoos, you know they are essentially feathered bolt-cutters. They can shred nylon netting in minutes and will eventually peel the zinc coating off galvanized wire, leading to heavy metal poisoning. 316 Stainless steel is the only material that is “parrot-proof.” It is too hard for them to deform and chemically inert, making it the safest choice for long-term health and security.
Expert Resource: Choosing the wrong hole size can be a costly mistake. Check our Bird Netting & Aviary Mesh technical charts to match aperture sizes with specific bird species.
4. Engineering the “Void”: Structural Considerations
Designing a large-scale aviary or primate habitat is essentially an exercise in “engineering the void.” You are trying to enclose a massive volume of air with as little visible structure as possible.

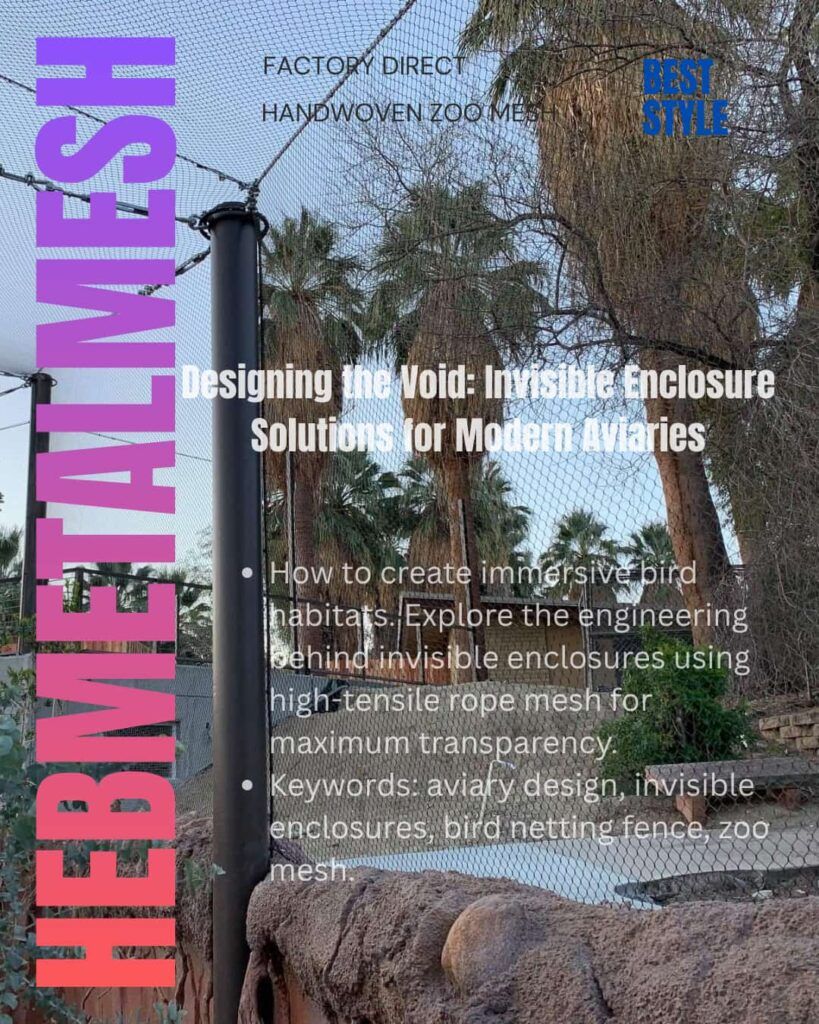

Compression vs. Tension Traditional buildings rely on compression—heavy beams pushing down on heavy walls. Rope mesh habitats rely on tension. By using a few strategic “masts” (compression members) and high-tensile perimeter cables, the mesh becomes the structural skin. This allows for breathtaking, “tent-like” structures that span hundreds of feet without a single internal column, providing birds with uninterrupted flight paths.
Topographical Adaptation One of the most expensive parts of construction is land grading. Rigid fencing requires flat ground. Rope mesh, however, has a “curtain” effect. It can be draped to follow the natural contours of hills, valleys, and even existing old-growth trees. This not only saves on construction costs but also allows you to keep the natural landscape intact, which is vital for the animals’ well-being and the “aha!” immersion factor for visitors.
Weather Load & Wind Shear Solid panels and even fine plastic netting can act like sails during a storm, putting immense pressure on the support poles. Stainless steel rope mesh is aerodynamic. High winds pass through the diamond apertures with minimal resistance (wind shear). Similarly, in colder climates, the thin wire profile prevents heavy snow accumulation that would collapse a traditional roof. It is a system built to thrive in the world’s harshest environments.
As we noted in our , this ability to handle extreme environmental loads makes stainless mesh the top choice for public urban safety as well. Whether it’s a snow load in the Alps or a hurricane in Florida, the engineering holds true.
5. Maintenance & Longevity in Corrosive Environments
In the world of zoological management, the environment isn’t just outdoor weather; it’s a constant chemical battle. Guano & Corrosion are the silent killers of traditional infrastructure. Bird droppings are highly acidic and can eat through galvanized coatings or lower-grade steels in a matter of months. This is why 316-grade stainless steel is absolutely non-negotiable. Its high molybdenum content provides superior resistance to the pitting and crevice corrosion caused by animal waste and harsh cleaning chemicals.
Speaking of cleaning protocols, rope mesh is a facility manager’s dream. Unlike glass, which requires a specialized crew and gallons of detergent to maintain transparency, or painted steel, which requires constant touch-ups to prevent rust, stainless mesh is virtually “self-cleaning.” Rain washes away most debris, and because of its thin profile, there’s very little surface area for dust to collect.
When you look at the 30-Year Investment, the ROI becomes undeniable. Cheaper alternatives—like nylon or galvanized wire—may look attractive on a spreadsheet today, but when you factor in the labor of replacement every 5 years, the risk of escape, and the potential for animal toxicity, the “cheap” option is actually the most expensive. High-quality rope mesh is a “set-and-forget” solution that maintains its tensile strength and visual clarity for decades. For a deeper dive into these material physics, check out our .
6. Case Studies: The “Immersion” Experience
The true test of mesh is the walk-through aviary. This is the peak of the immersion experience, where visitors enter the animal’s world. By using flexible rope mesh, designers can create “air-lock” double-door systems that integrate seamlessly into the mesh walls. This ensures that even in high-traffic exhibits, the transition from the “human world” to the “bird world” is architecturally fluid and 100% secure.
We are also seeing a massive trend in multi-species habitats. Imagine a single, massive “super-enclosure” that houses both ground-dwelling mammals and high-flying birds. Because rope mesh can be customized with varying aperture sizes in a single continuous panel, designers can create a seamless visual landscape that keeps different species safely partitioned where necessary while maintaining a singular, unified horizon. This isn’t just a cage; it’s a slice of the wild.
To see how this same “multi-species” logic is applied to larger land animals, take a look at our specialized Animal Fence Mesh applications.
Build a Habitat Without Boundaries
Don’t let your design be confined by rigid steel bars. Discover the freedom of HEB Metal Mesh — the choice of professional zoo designers worldwide.
Custom Apertures • High Tensile Strength • Global Project Support
FAQs
Modern invisible aviary enclosures require a sophisticated balance of high-tensile 316 stainless steel and architectural transparency. Rope mesh provides up to 99% visual clarity, ensuring an immersive visitor experience while maintaining 100% containment security. It is the only material that offers the structural flexibility to create organic, “tent-like” shapes that follow natural topography, all while resisting the corrosive effects of acidic guano and harsh weather. For modern zoological design, it is the undisputed industry standard.
Absolutely. While we provide mesh for world-class zoos, the same professional-grade material is available for residential bird enthusiasts. It is significantly easier to install in backyard settings than rigid welded panels and offers a much higher aesthetic value
No. Unlike welded wire, which can have sharp edges or “burrs” at the joint points, our rope mesh is hand-woven and smooth. The flexible texture is actually safer for birds’ feet and prevents feather damage during contact.
Yes. Stainless steel is non-toxic and “chew-proof.” Unlike galvanized wire, which can cause heavy metal poisoning, or nylon, which parrots can shred, 316 stainless steel stands up to the strongest beaks.
Aperture (hole) size is critical. Generally, smaller songbirds require a 20mm to 30mm mesh, while larger raptors can use 50mm or larger. You can find specific recommendations in our Bird Netting & Aviary Mesh technical guide.
