Most buyers comparing aviary mesh with other bird enclosure materials compare the wrong two things. The alternatives — welded wire, galvanised netting, plastic net, glass, chain link — are settled in an afternoon, because the specifications are public. The comparison that decides whether an enclosure is sound in its twentieth year is between the mesh that was quoted and the mesh that arrives on the pallet. Those two are meant to be identical. Sometimes they are not, and the difference is invisible on delivery day.
Executive Summary
An aviary mesh order can be substituted in three ways, and in practice only three: the alloy grade of the wire, the gauge of the cable, and the length of the roll. Grade is the expensive one. A 201 grade mesh carries a fraction of the nickel that 304 does, so it looks right, prices low and begins to pit within two years — a low nickel content mesh is a specification error, never a bargain. Gauge is the quiet one, because strength falls with the square of diameter: a cable sold as 1/16 inch that measures 1.35 mm has lost about 28 percent of its cross-section. Roll length is the easiest to catch, with a scale. None of the three survives a twenty-minute mesh delivery inspection with a caliper, a magnet, a drop of nickel test solution and a roll weight. The reference specification is the bird aviary mesh product page.
Holding a quote you are not sure about? Send us the specification sheet and the price. We flag a substituted grade, an under-gauge cable or a short roll, and return an honest price within 24 hours.
Quick Answer:
Aviary mesh orders fail far more often from substitution than from a poor material choice. Buyers who compare aviary mesh with welded wire, galvanised netting or glass usually reach a defensible decision, then receive something that does not match it. Verify three numbers at goods-in — alloy grade, cable diameter and delivered weight — and the exposure drops to almost nothing.
Key Takeaways
- Only three substitutions carry real risk. Grade, gauge and roll length account for nearly every aviary mesh buying trap.
- Grade stays invisible until it rains. 201 grade mesh and 304 grade mesh look identical on day one and diverge by the second wet season.
- Strength follows area, not diameter. A cable 0.25 mm under nominal loses roughly 28% of its cross-section and a similar share of its breaking load.
- A scale catches the oldest trick. A roll delivered underweight, or measuring short, shows up in one weighing.
- Documents first, goods second. A mill certificate tied to a heat number is the only claim still enforceable six months later.
Stainless grades and the chemistry behind them are documented by the Nickel Institute, whose published alloy data underpins the grade discussion below.
The Comparison That Decides the Outcome
Chain link, welded wire, galvanised netting, plastic net, glass — the case for and against each is well documented, and a supplier will happily hand you the comparison. What nobody hands you is the comparison between the specification you signed and the container you signed for. That is the one that fails.
Two facts explain why. Stainless cable is a commodity priced on nickel, and the grade difference is invisible to the eye. The failure is also slow: a substituted panel performs perfectly for a season, long enough for payment to clear and the claim window to close. Mesh substitution is a pricing strategy, not an accident, aimed at the buyer who cannot test on arrival.
Where the neighbouring families repay reading is in how they age rather than how they look — the panel-level view is in this wire mesh comparison for zoo projects and the construction argument in welded versus woven mesh. Neither helps once the roll is on site, which is where the mesh buying traps below all begin.
Substitution One: The Alloy Grade
This is the classic. A supplier quotes 304, ships 201 or ferritic 430, and prices the order at a margin that looks generous rather than impossible.
The chemistry is the tell. 304 carries roughly 18 percent chromium and 8 to 10 percent nickel; 201 replaces much of that nickel with manganese. Remove the nickel and the passive layer that protects the steel can no longer heal itself, so pitting begins wherever chloride and moisture collect — around droppings, under perches, along the lower run of a panel that never fully dries. Stainless that rusts in an outdoor aviary is almost always stainless that never had the nickel.

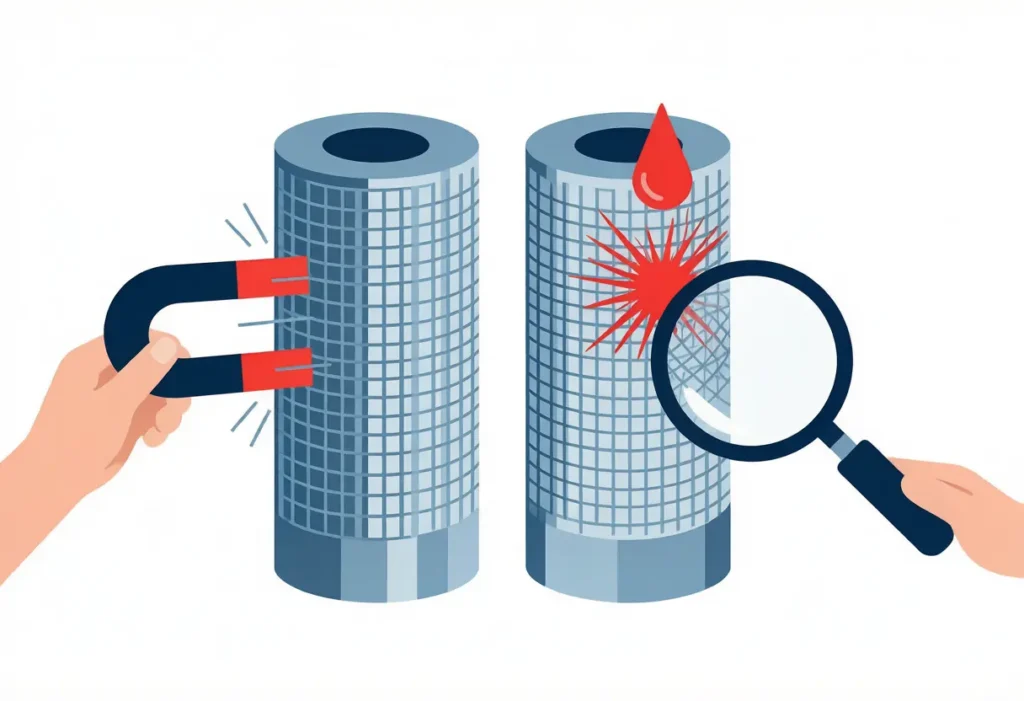

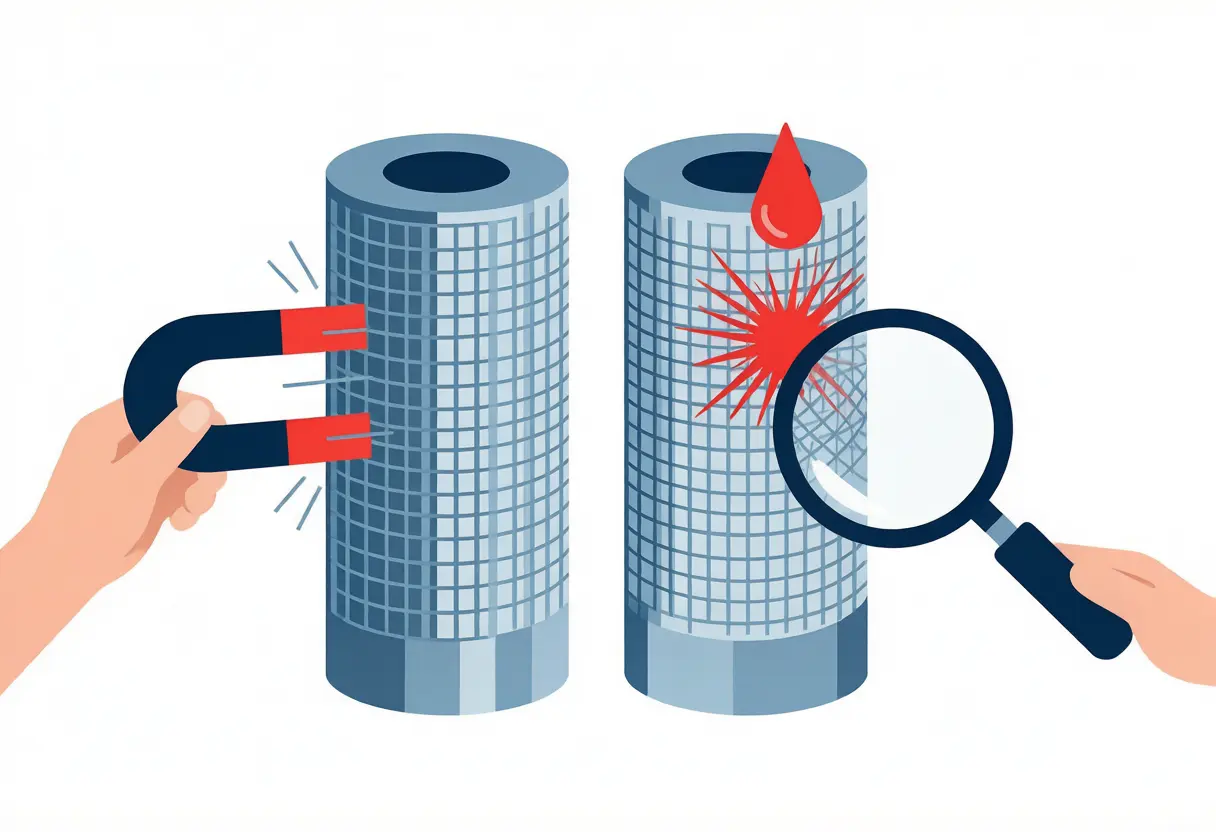

Four tests settle it, in increasing order of authority:
- Magnet. Ferritic 430 grips hard, 201 pulls noticeably, annealed 304 barely responds. Cold-drawn 304 shows faint magnetism, so treat the magnet as a screen, not a verdict.
- Nickel test solution. A manganese-sensitive drop turns colour on 201 within a minute and stays clear on genuine 304.
- XRF. A handheld analyser reads chromium and nickel in seconds; any third-party laboratory will run one for a modest fee.
- Paper. Genuine 304 lands near 18/8. If a supplier will not commit those figures and the alloy grade to a written specification, that is your answer.
A wrong grade delivered is the one defect that must be caught in the unloading bay, because every hour a roll spends in the store weakens the claim that it arrived that way.
Substitution Two: The Cable Gauge
A 0.25 mm shortfall in cable diameter sounds trivial and is not. Strength scales with cross-sectional area, and area scales with the square of diameter, so a small measured gap becomes a large structural one.
| Cable sold as | Should measure | Sometimes measures | Cross-section lost |
| 3/64 in | 1.20 mm | 1.10 mm | about 16% |
| 1/16 in | 1.60 mm | 1.50 mm | about 12% |
| 1/16 in | 1.60 mm | 1.35 mm | about 28% |
| 5/64 in | 2.00 mm | 1.85 mm | about 14% |
| 3/32 in | 2.40 mm | 2.20 mm | about 16% |

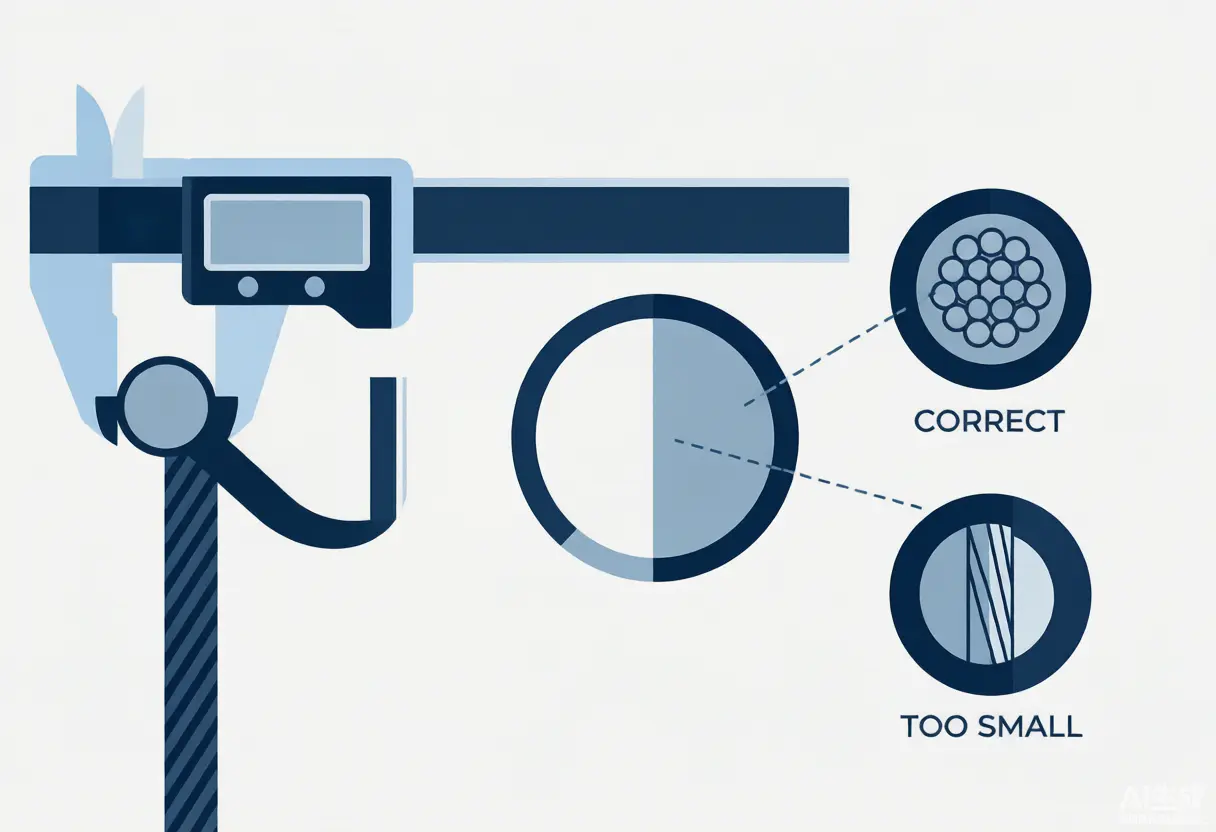

A digital caliper answers the question in five minutes. Measure at five points along the roll, on a straight section of cable and never across a ferrule, which always reads larger. Accept roughly plus or minus 0.05 mm; reject anything more than 0.10 mm under nominal. Construction matters too: a seven by seven strand cable and a seven by nineteen cable of the same diameter will not behave alike. A cable gauge check is five readings and a note.
Aperture is the twin of gauge and is measured the same way: opening after opening, side to side and corner to corner. A quick mesh gauge check across ten openings usually exposes a panel woven to a nominal aperture that has drifted a few millimetres in one direction — which matters most for small birds, where the size chart by species is in this guide to mesh size for bird enclosures.
Substitution Three: The Roll Itself
Short measure is the oldest trick in the trade and the least technical. A roll sold as 25 ft by 60 ft should yield 1,500 square feet of finished panel. Sellers who fail that test rarely lie about dimensions; they measure something else — the diagonal of the diamond pattern, or the untensioned length, which a hand-woven panel sheds once it is pulled flat.
The check is a weight, not a tape. Work out the theoretical figure from cable diameter, aperture and area, then stand the roll on a platform scale and compare. A divergence beyond about 5 percent needs an explanation in writing. Two more items belong in the same five minutes: the edge cable should run continuous along both sides, and the ferrules should be uniformly machine-crimped and free of splits.
The Four Checks That Catch All Three

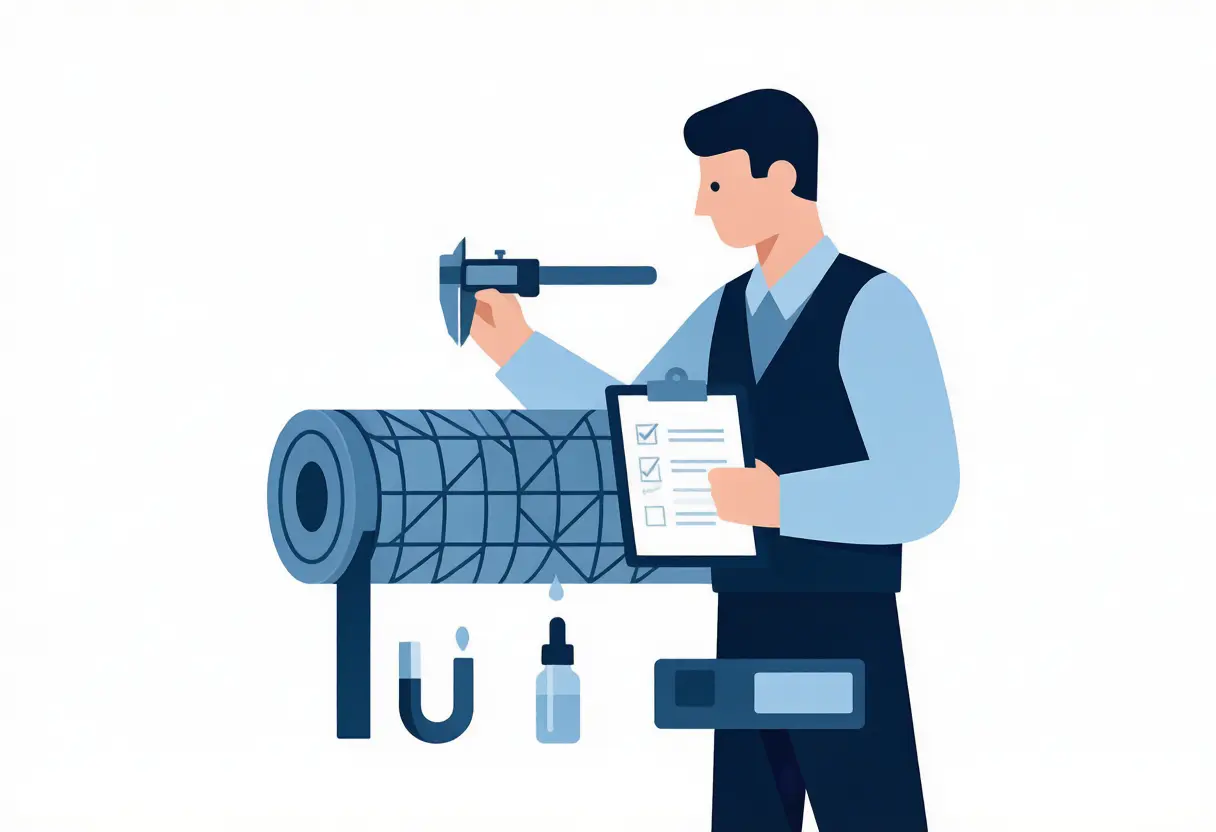

There is no single trick to spot a fake mesh, only a short routine that leaves nowhere to hide. Run it on every delivery, before unloading. One person, a small kit, about twenty minutes.
- Documents. Match the heat number on the mill certificate to the tag on the roll. No match, no unloading.
- Magnet sweep. Pass it across the roll face and note any strong pull points.
- Nickel drop. Two spots per roll, one near each end.
- Caliper and scale. Five cable readings, ten aperture readings, one roll weight, all recorded on a form.
Add a fifth step that costs nothing: photograph everything before the packaging is opened, with the shipping label in frame. Photographed evidence resolves claims in days; unphotographed disputes run for months. Written down as one sheet, these five steps are the whole mesh verification checklist, and they catch grade, gauge and length at once, because each substitution leaves a different physical trace.
What the Documents Should Carry
A mesh material certificate check is worth more than any verbal assurance, but only when the certificate is specific:
- A mill certificate naming the heat number, the alloy grade and the measured chromium and nickel content.
- A dimensional report for the actual production run, not the catalogue tolerance.
- A minimum breaking load figure for the finished cable, by size and construction, not for the raw rod.
- A packing list showing roll count, nominal dimensions and unit weights.
- A written policy covering what happens if incoming inspection fails.
Ask for a mesh approval sample before the production run, and keep it. A one-metre panel of the approved material, sealed and dated, turns every later conversation into a comparison rather than an argument. The mesh supplier red flags are usually administrative: evasive answers about which mill supplied the rod, no heat number, a certificate issued by the trader rather than the mill, or a price below the raw material floor.
Where Cheap Mesh Problems Surface Later
Substitution does not announce itself at handover. It arrives as a pattern of failures that individually look like bad luck, and cheap mesh problems rarely stay invisible past the second summer.
Rust streaks radiating from the cross point. Water hangs longest where two wires meet, so the intersection is the first place a deficient passive layer shows. Streaking that begins at the joints rather than at random points is a chemistry signal.

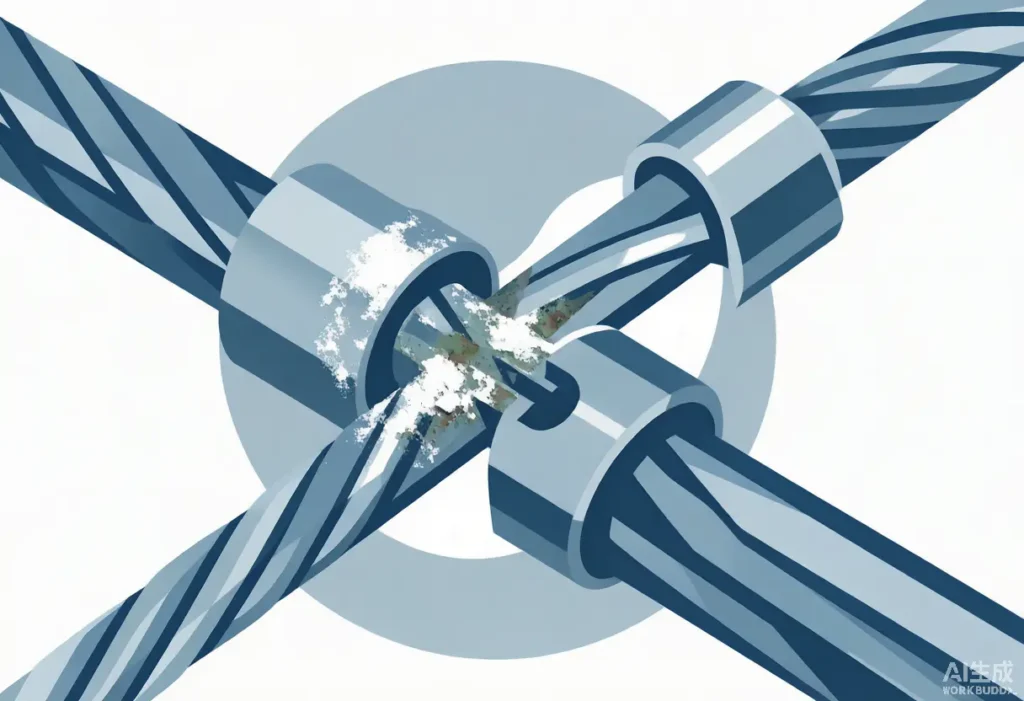

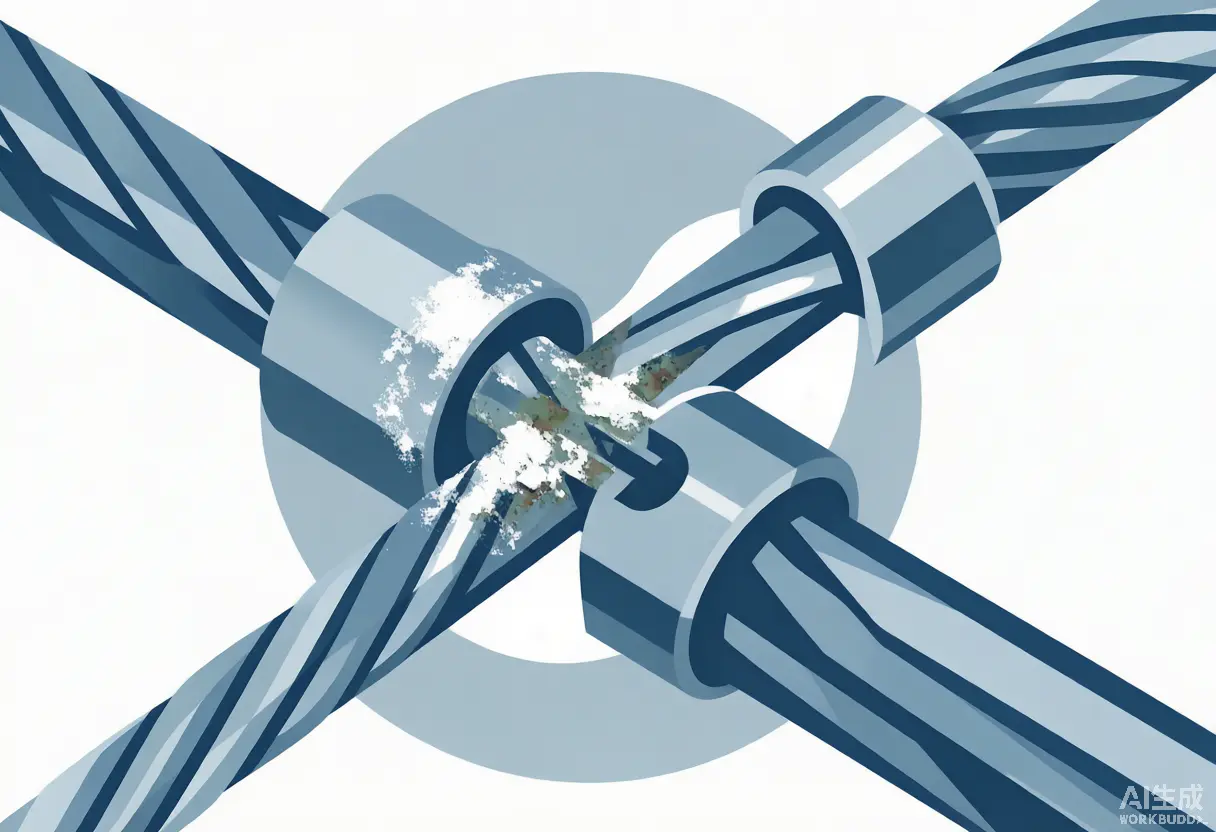

Ferrule corrosion at the crimps. Mixing aluminium or plated ferrules with stainless cable in a wet, ammonia-rich enclosure creates galvanic corrosion. The ferrule sacrifices itself, the crimp loosens, and the aperture opens under load.
Edge failure before panel failure. If the border cable and the fastenings are a lower grade than the mesh, the panel outlives its own edges, and that is a repair nobody can do in place.
Sag that arrives early. A panel that sags within two seasons on a span that should hold is usually an under-gauge cable, not a tensioning error, and re-tensioning does not restore a diameter.
Replacement is not the only cost: dismantling a stocked enclosure, moving birds twice and losing a breeding season will usually exceed the price difference several times over. The aviary mesh product page sets out the aperture, cable diameter and alloy combinations this reasoning assumes.
Specifying So There Is Nothing to Substitute
The cheapest defence is a specification that removes the option. Every variable left vague is a variable that can move.
Name the alloy, 304 or 316, the cable diameter with a tolerance, the aperture measured node to node, the construction, the finish, the ferrule material and the roll size as the finished, tensioned dimension. Then require the documents that prove each item. A supplier who can complete that sheet has nothing left to substitute. One who cannot is not careless; the vagueness is the mechanism.
Hand-woven rope mesh repays this treatment because the format is the product: the panel is crimped at every intersection, so there is no weld to shear and no coating to blister. That is the reasoning behind the hand-woven stainless mesh range. Used properly, this mesh selection guide will settle the rest.
One habit finishes the job: buy the roll and the hardware from the same source. Hardware pulled from a separate supply chain is where mixed grades enter, and a stainless enclosure fitted with plated clips is a corrosion cell waiting for its first wet week.
Frequently Asked Questions
No. Cold drawing makes genuine 304 faintly magnetic, so a light pull tells you little. Use the magnet as a first pass, then confirm with a nickel test solution or a laboratory XRF reading.
Use a digital caliper on straight cable, never across a ferrule, and take five readings along the roll. Anything more than 0.10 mm under nominal is a rejection, not a negotiation.
Only inside a dry display cage, and even there 304 costs very little more. Outdoors, 201’s reduced nickel content leaves it exposed to pitting in rain, humidity and droppings, and the failure tends to appear after the warranty has expired.
Not on its own. It proves what was produced, not what was loaded. The guarantee comes from matching its heat number to the tag on the delivered roll, which is why the check belongs in the unloading bay rather than in an office drawer.
